Brando's special insulated cable

Aug. 31, 2019

            Brando's special insulated cable

Brando's mine lamps made in special insulated cables, all mine lamps with cables are SPE black insulated cables.The conductor material of the cable is soft copper wire, which is filled with flexible material and covered with special PVC material.

Brando's special insulated cable

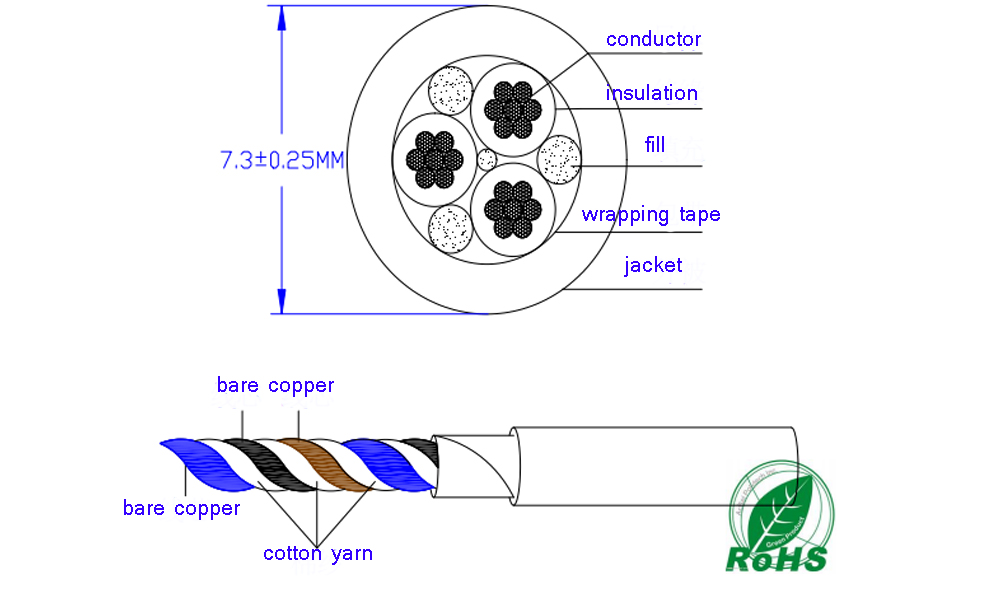

conductor:material:bare copper    conductor duameter:1.15mm
insulation:material:SPE     average thickness:0.4mm
shield:fill:cotton yarn     wrapping tape:non-woven fabrics
jacket:material:special PVC     outer diameter:7.3-/+0.25mm
temperature rating-25 degree centigrade~80 degree centigrade
voltage rating300/500V
test voltage1.5KV/1min
spark test4.0KV
low temperature bend test-10 degree centigrade  2h
flame testIEC 60332-1/VW-1

Brando's special insulated cable
